Ketra’s recessed downlight offers fixed, adjustable, and wall-wash options that elevate the standard for premium architectural downlighting. Experience dynamic natural light, a limitless range of whites and colors—and a flexible, wireless control system for creating customized designs as your space evolves.
Powerful Illumination

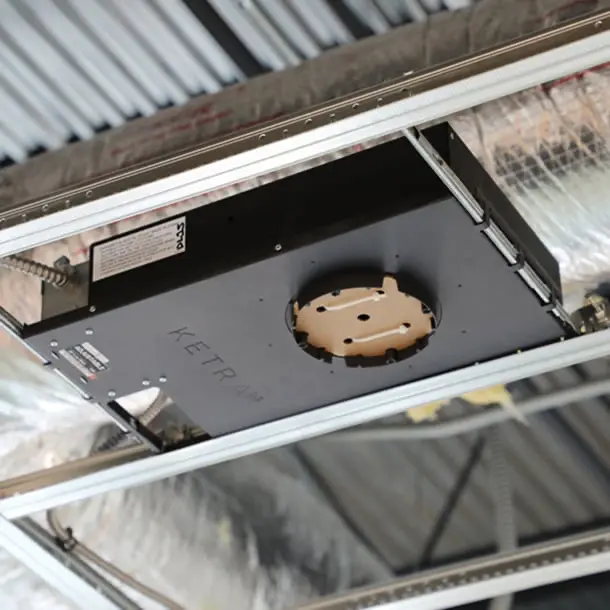

Compact and Compatible
Created with compatibility in mind, Ketra’s shallow, IC-rated downlight housing slides seamlessly into an expanded range of ceiling types including wood, stone, and tile.

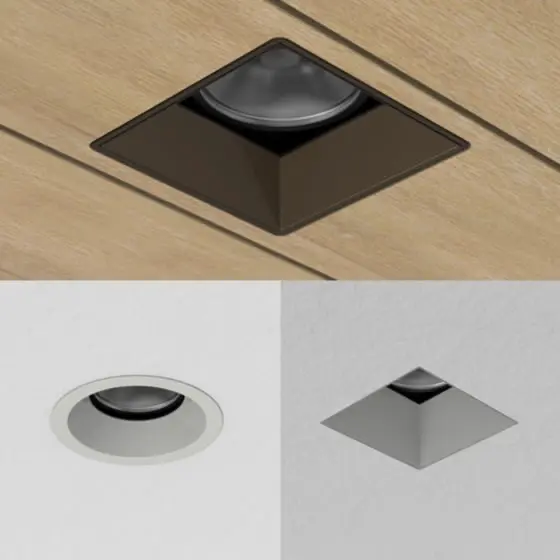

Trims for Every Style
From flanged to flangeless, square to round, and paintable white to powder-coated finishes in black, bronze, or silver, create and customize the trim that speaks to you.
Interchangeable Optics
Take charge with interchangeable optics and a range of beam angles that can be swapped in-field. Add secondary lenses for diffusion or glare reduction.
Wire-Free for Endless Flexibility
A fully wireless system leverages Lutron Clear Connect Type X, simplifying installations and allowing for endless adjustments as your space evolves.
1
Low profile (3.5”), insulation contact and airtight rated housing
2
Toolless adjustments between high and low regress emitter depth positions
3
Reliable, toolless aiming with easily adjustable friction set lever locks
4
Field replaceable power supply with integrated wireless control
5
Field serviceable emitter outputs over 1000 lumens
6
Field changeable primary optics allow for beam angle optimization
7
A selection of secondary lens attachments can be mounted at either the primary optic or at the trim
8
Painted, die cast aluminum trims are held securely in place for a tight-to-the-ceiling finish

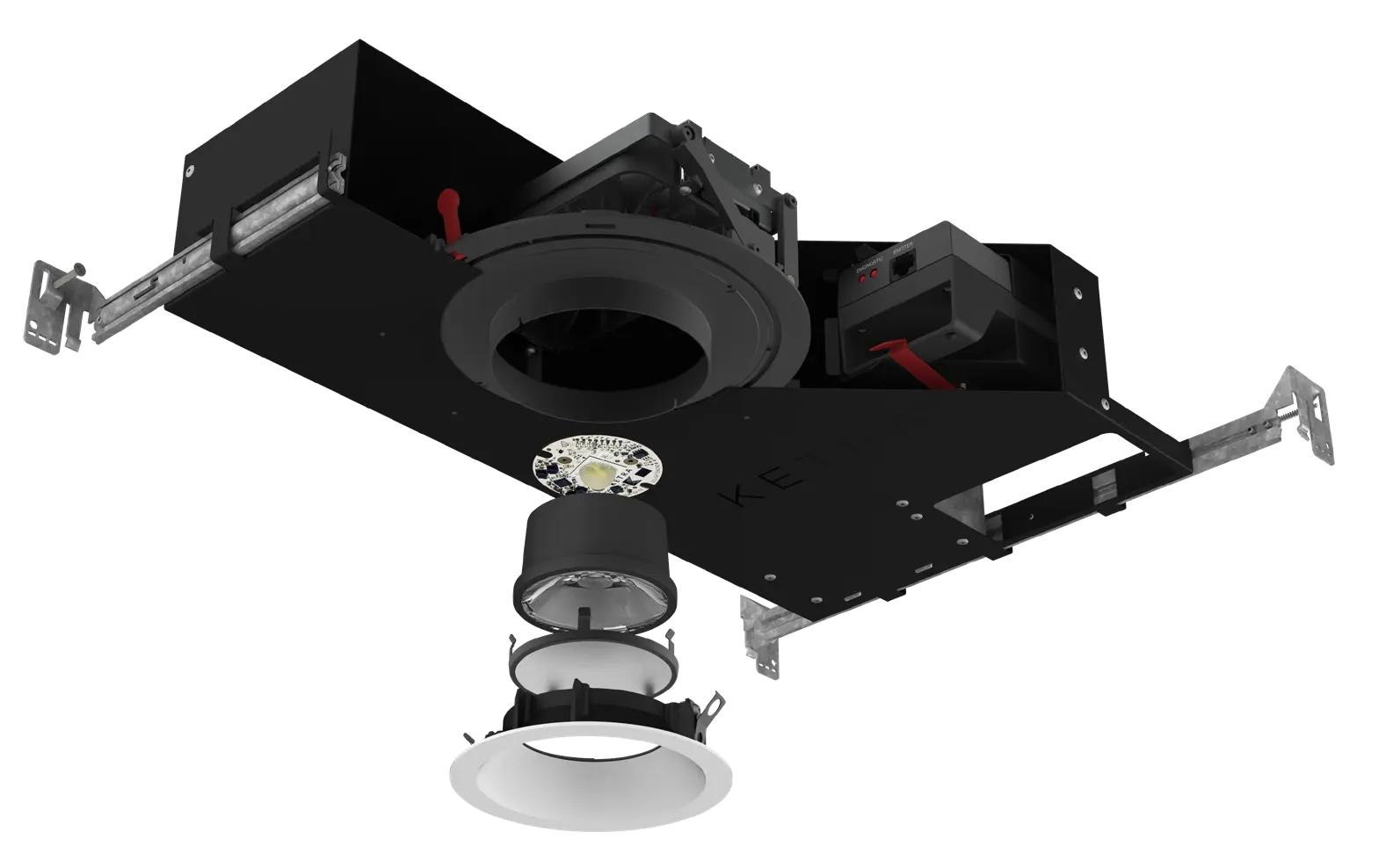

Anatomy of the Ketra D3 Downlight
Using a system of interchangeable parts and components, each D2 downlight can be customized to meet the design and architectural needs of the space in which it lives.
- Low profile (3.5”), insulation contact and airtight rated housing
- Toolless adjustments between high and low regress emitter depth positions
- Reliable, toolless aiming with easily adjustable friction set lever locks
- Field replaceable power supply with integrated wireless control
- Field serviceable emitter outputs over 1000 lumens
- Field changeable primary optics allow for beam angle optimization
- A selection of secondary lens attachments can be mounted at either the primary optic or at the trim
- Painted, die cast aluminum trims are held securely in place for a tight-to-the-ceiling finish
Specifications
- LUMEN OUTPUTS – 1100
- HOUSING COLORS – White, Black
- BASE TYPES – E26 Edison, BaseGU24
- CONTROL – Lutron Clear Connect Type X
- BEAM ANGLES – 10°, 25°, 40°, 60°
- WATTAGE – 12W, 14W
- CA COMPLIANCE – High-Efficacy versions available for T24 JA8 and T20 compliance
