CoB means Chip on Board. LED chips are mounted directly on a board beneath a protective surface. AWALL’s manufacturer diagram above shows the construction layers.
MALIBU WIRED / AWALL MICROLED
A bigger everyday picture.
Built around your room.
Explore AWALL’s seamless CoB MicroLED displays with Malibu Wired. From a living-room canvas to a dedicated cinema, we plan the display, sound and control as one experience.

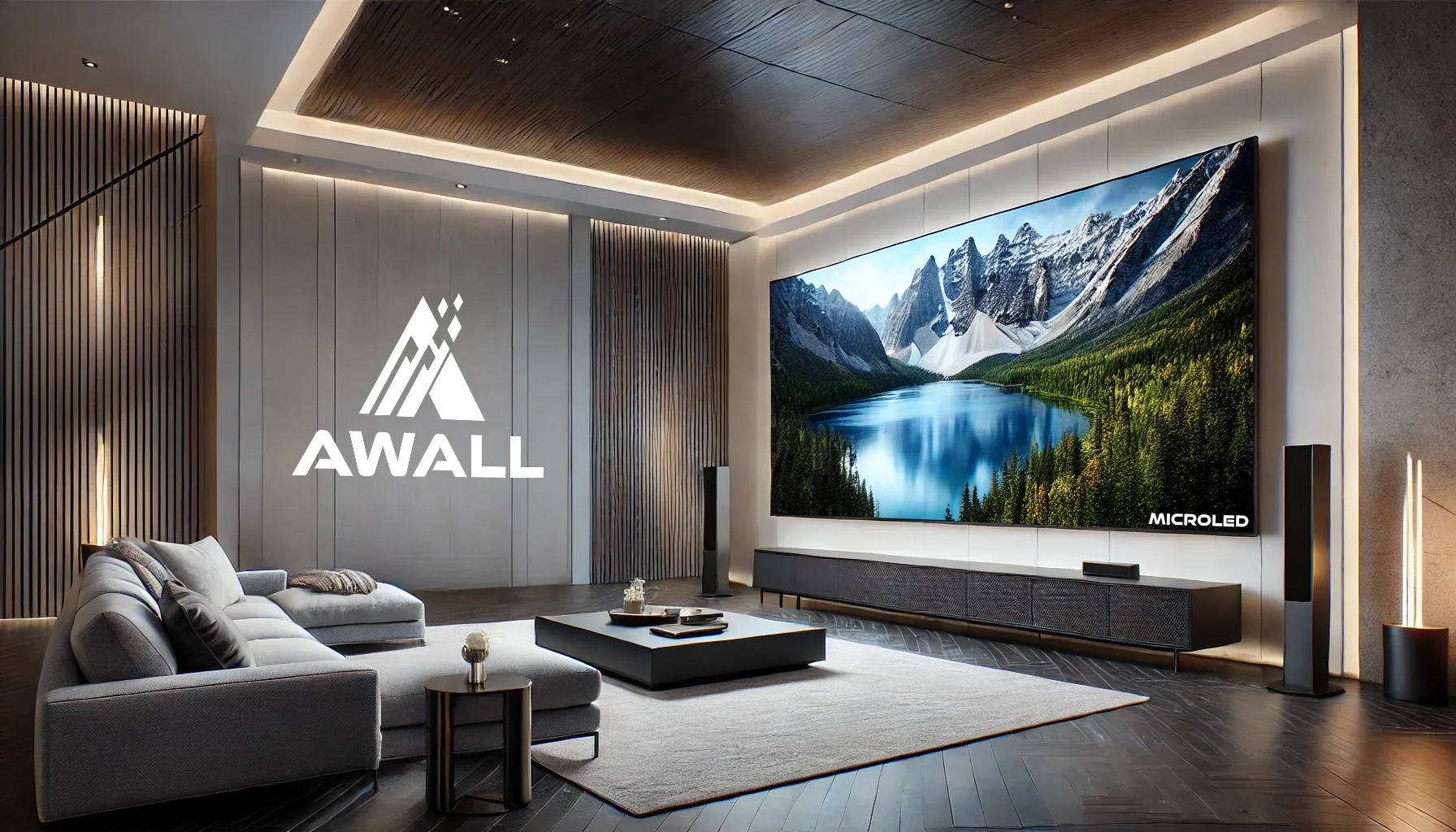

AWALL manufacturer concept illustration. Your room and installation are designed individually.
Small pixels.
A closer look at the technology.
AWALL uses Flip-Chip CoB construction: LED chips sit directly on the board, beneath a protective surface. Fine pixel pitch can support closer seating; the visible result also depends on the native pixel count, calibration, source and light in your room.

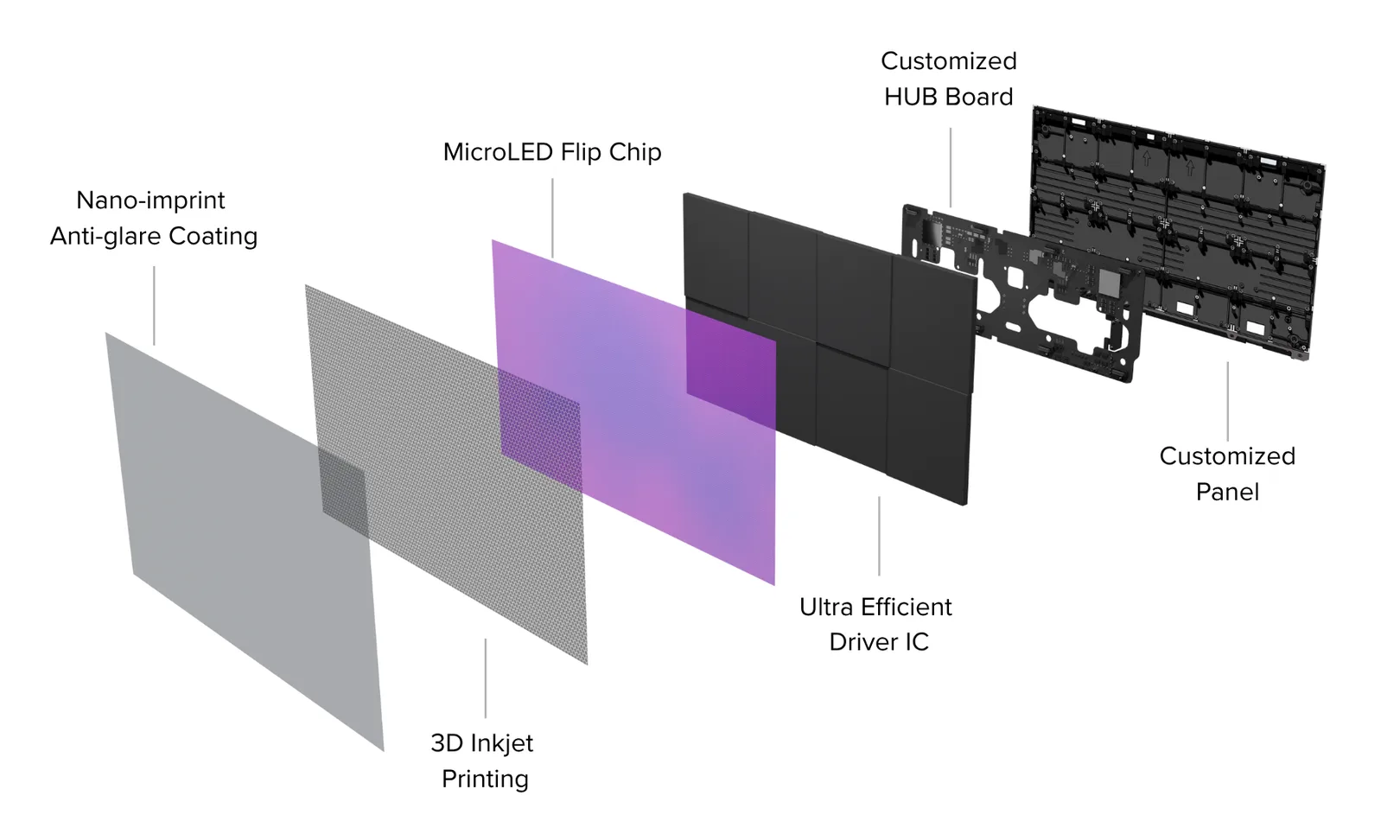

Manufacturer diagram of the panel layers. The image illustrates construction rather than a Malibu Wired installation.
A surface designed for everyday spaces.
AWALL describes a resin-protected surface, anti-glare layers and per-pixel calibration. We assess reflections and seating in your actual room, then specify the complete display and signal path.
Choose the canvas.
Then choose its performance.
These four manufacturer specifications show why size, native resolution and brightness need separate decisions. A 6 × 5 array is wider than a 16:9 array; 3,840 × 1,800 pixels is not the same as 3,840 × 2,160 UHD.
C135 · 0.9 mm
25 cabinets · 5 × 5
3,200 × 1,800 pixels
1,200-nit specified brightness · 13-bit processing
C135 · 1.2 mm
25 cabinets · 5 × 5
2,400 × 1,350 pixels
1,200-nit specified brightness · 13-bit processing
C157 · 0.9 mm
30 cabinets · 6 × 5
3,840 × 1,800 pixels
1,200-nit specified brightness · 13-bit processing
I157 · 0.9 mm
30 cabinets · 6 × 5
3,840 × 1,800 pixels
2,500-nit specified brightness · 16-bit processing
Manufacturer-rated specifications are not a promise of calibrated brightness in every mode. Final availability, package contents and settings are confirmed in the proposal.
Designed for alignment.
Planned for service.

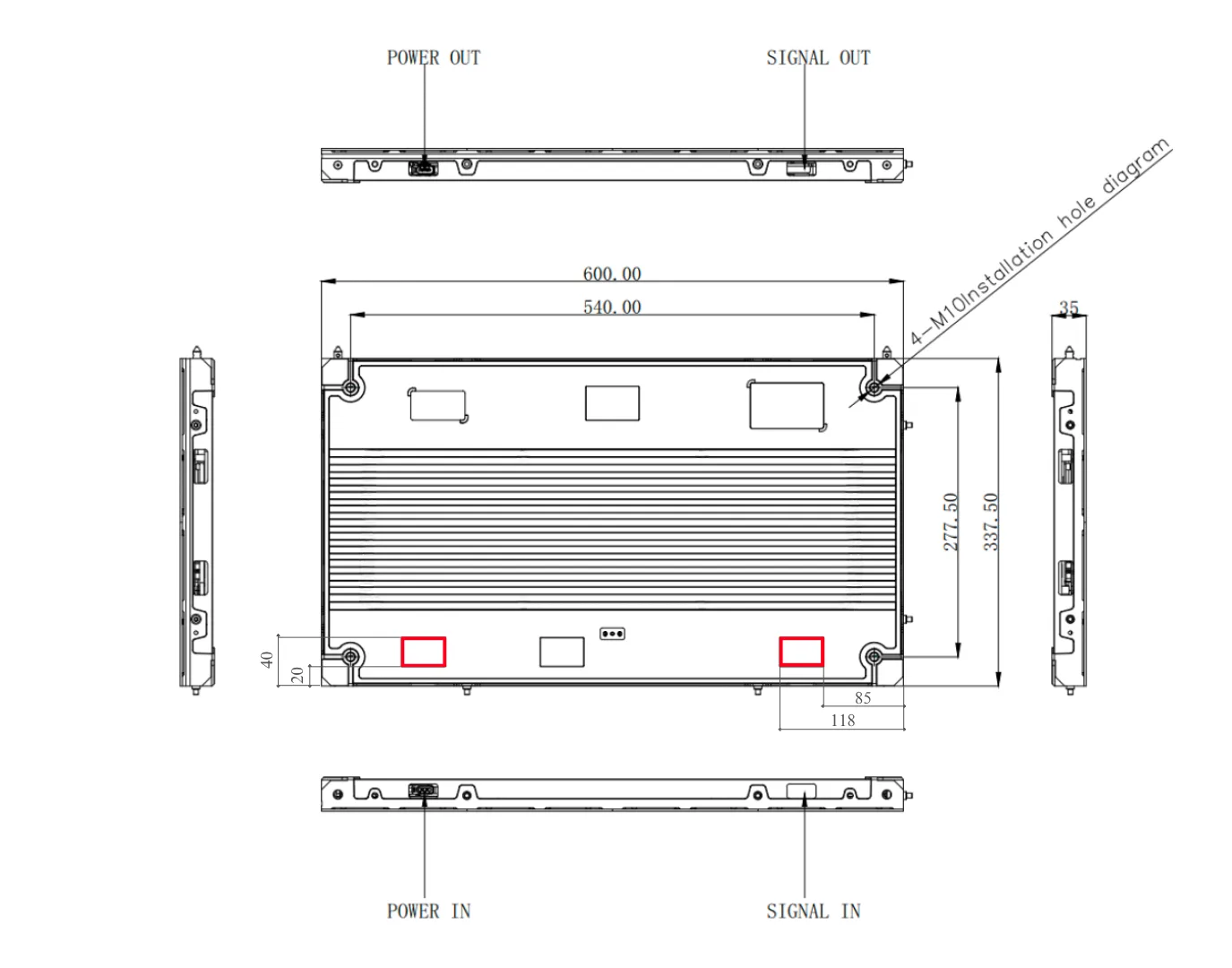

The reviewed systems use 600 × 337.5 mm cabinets with front access for service. We plan mounting, power, ventilation, cable routes and access before installation. The drawing is a cabinet reference, not a complete room construction plan.
Quality continues at commissioning: check alignment, inspect the image across the whole canvas and calibrate the completed display for its use. AWALL describes professional installation and final calibration; we confirm the exact acceptance process for your project.

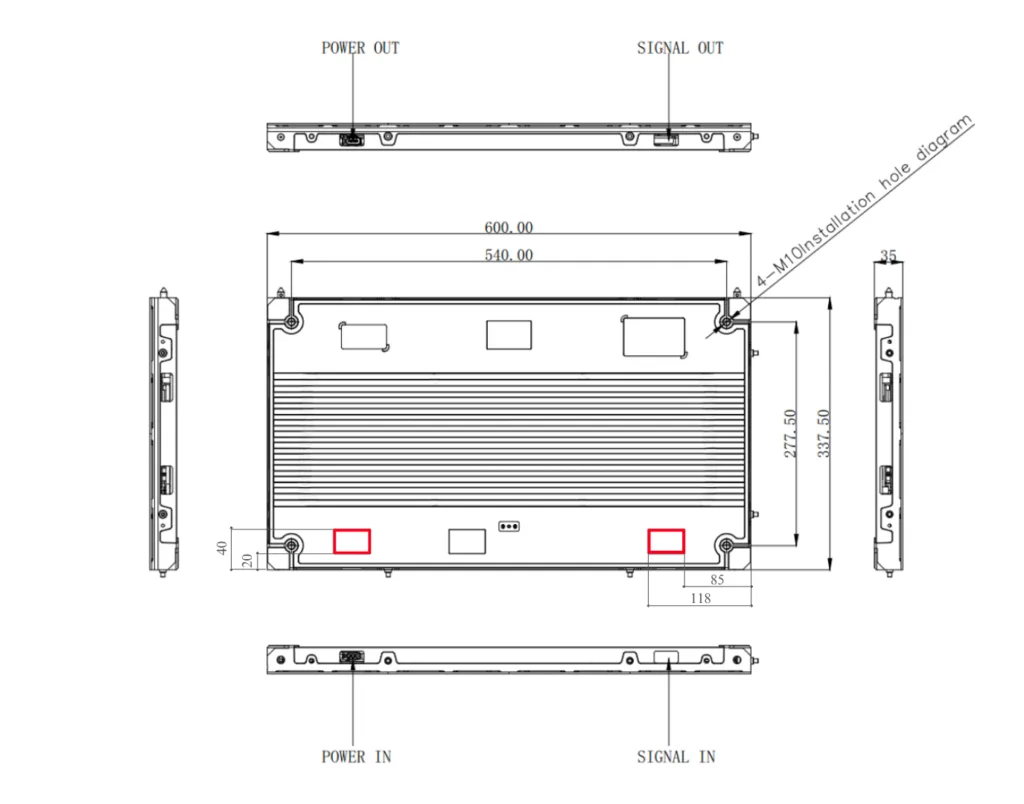

Original AWALL cabinet dimension drawing. Dimensions shown in millimetres.
Keep the original specifications.
Download AWALL’s original C-Series overview to compare published sizes and pixel pitches. We also have the detailed C135, C157 and I157 engineering specifications available for your project discussion.
AWALL questions.
Does a larger diagonal automatically mean 4K?
No. Native pixels depend on cabinet count and pitch. The reviewed 0.9 mm C157 and I157 6 × 5 arrays are 3,840 × 1,800. We confirm the exact native resolution and content format before specifying the wall.
Can you include sound, sources and room control?
Yes. Malibu Wired plans the complete room, including source equipment, signal processing, audio, lighting and control. Mounting, electrical and ventilation requirements are reviewed as part of the project.
Bring the whole room together.
Tell us about the space, the closest seat and what you want to watch. We will help turn the first idea into a complete AWALL system.
